Item #: AP6477

Price: $39.93

Temporarily out of stock; call for availability.

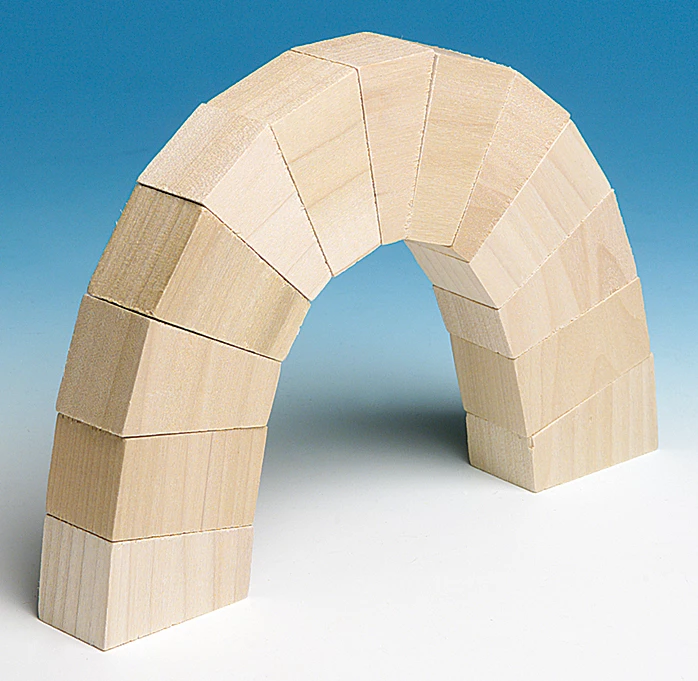

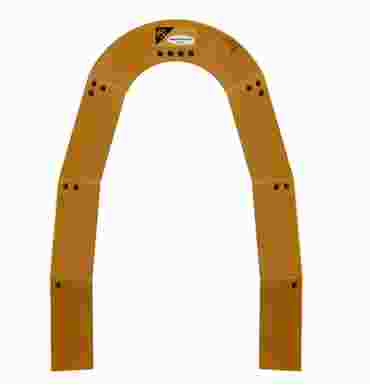

With the Catenary Arch Model for physical science and physics, construct the catenary arch from the provided blocks and template to see firsthand the strength and stability of this type of arch and where it may be useful—like St. Louis.

See more product details

Product Details

In physics and geometry, the catenary is the shape described by a hanging chain or string when supported only at its own ends. The curves described by catenaries are used in architecture in the design of bridges and arches so that the forces do not result in shearing stresses on the stones. Sir Robert Hooke described this shape in 1675, “… as hangs a flexible cable so, inverted, stand the touching pieces of an arch.”

The Eisco Garage Physics line is aimed at students aged 7-13 interested in STEM concepts included physics and engineering. Each kit engages the young learner to discover new ideas about the physical world through assembly and play. The kits contain pre-cut wooden pieces that resemble woodworking projects.


The Standing Arch Kit is composed of seven wooden blocks that when properly assembled produce the shape of the catenary arch. This kit engages students to learn engineering concepts such as force balancing and load transfer through the assembly of the arch. The kit shows students how vaulted arches and types of bridges are constructed, and how they are able to bear the weight of buildings and roadways they hold up. By playing with the various blocks, young learners can understand the importance of the keystone in holding up the arch.
