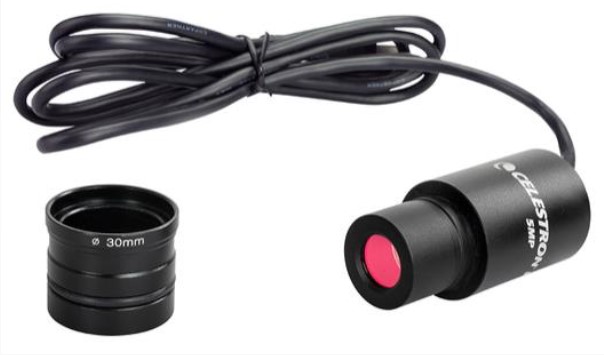

Celestron 5MP Digital Imager

Celestron 5MP Digital Imager
Celestron 5MP Digital Imager
Item #: AP10230

Price: $175.00

In Stock.

Turn your traditional microscope into a digital microscope with the Celestron 5MP Digital Microscope Imager. It’s the perfect tool to capture high resolution images and 30 fps video and save those files directly to your PC. Features NEW robust software with additional features like measurement, calibration, note-taking and more.

See more product details

This item can only be shipped to schools, museums and science centers

Product Details

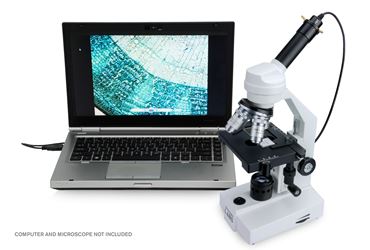

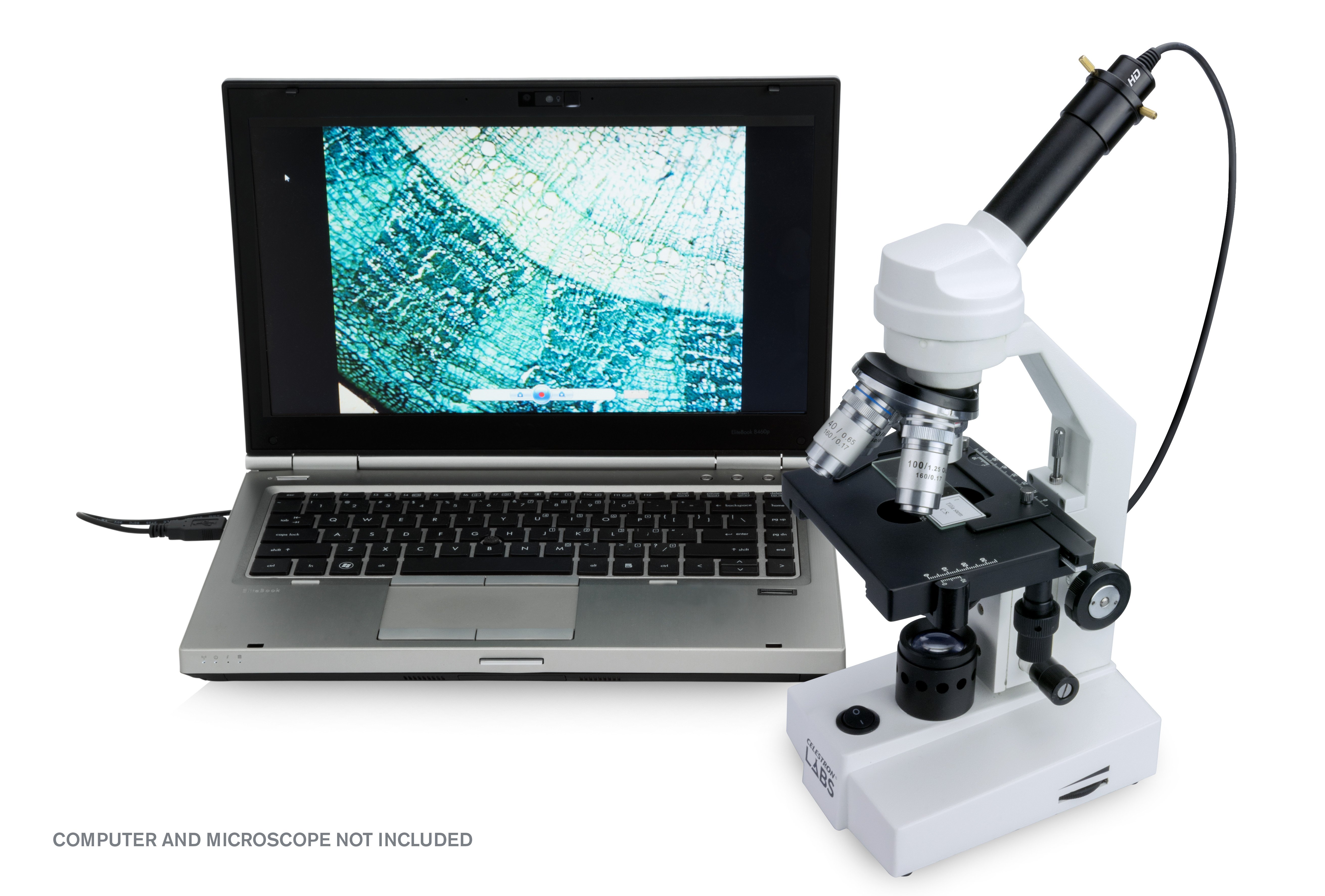

Turn your traditional microscope into a digital microscope with the Celestron 5MP Digital Microscope Imager. It’s the perfect tool to capture high resolution images and 30 fps video and save those files directly to your PC. With a rugged aluminum housing, this imager can stand up to tough use in any classroom or lab. To get started, simply choose the correct adjustment collar for your microscope—either 23mm or 30mm—and connect the imager via USB. No additional power source is needed. The imager works in full 5-megapixel resolution with Windows PCs and in 2-megapixel resolution with Macs. The imager’snew and improved software offers advanced features that researchers will appreciate. Note-taking mode enables you to highlight areas of your specimen for use in reports or presentations. A comparison tool allows you to compare two live streams side-by-side.



Specifications



SPECIFICATIONS
Image Sensor: 5 MP CMOS
Sensor Size 1/ 2.8" Sony IMX335
Resolution 2592 x 1944
Pixel Size 2 x 2 μm
Power Standard: 2.0 USB (Connected to PC) - Cord Length 1.5m (4.93')
Video Format - Streaming: MJPEG: 30 fps @ 1024x768/ 12fps @ 2592x1944
Video Format - Recording: MJPEG: 30 fps @ 1024x768/ 12fps @ 2592x1944
YUV: 2fps @ 2592x1944/ 1-fps @ 1024x768
Shutter Trigger: In Software
Software: Celestron Digital Imager HD Software
Software Compatibility: Windows 7.1 to Windows 11 | Mac OSX 10.9 (Mavericks) to 12.3 (Monterey)
Accessories: (1)Aluminum collar adapter for 30mm stereo scope eyepiece tube
Weight: 97g (3.4 oz)
Dimensions: 61.8mm x 30mm x 30mm (2.43" x 1.18" x 1.18")
