Item #: MS1214

Price: $987.00

In Stock.

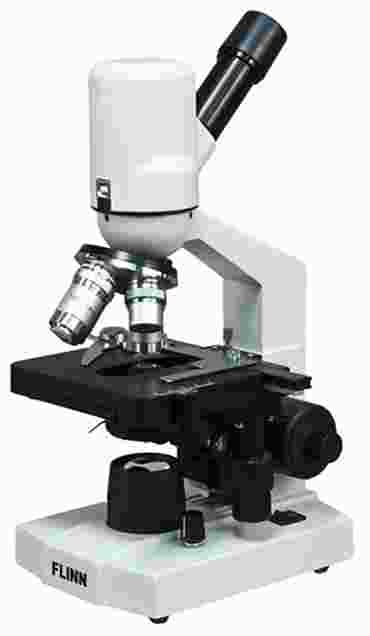

The Flinn Economy Digital Microscope is well-designed, budget-friendly, and the top choice for introductory biology classes. Each scope has a compact, chemical-resistant metal body that will stand up to years of use.

See more product details

Product Details

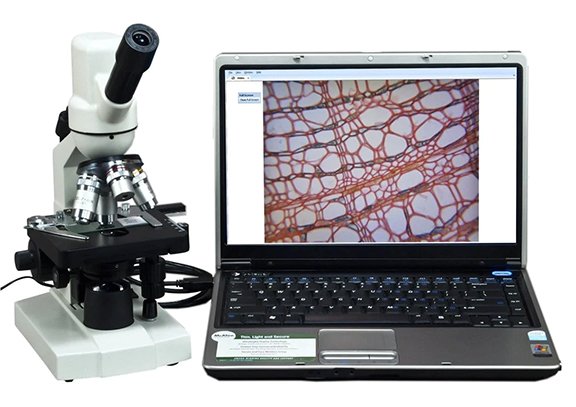

The Flinn Economy Digital Microscope is an affordable and versatile tool that provides essential functionality for common microscopy applications in the classroom or laboratory. The digital-integrated head allows for simultaneous viewing through the eyepiece and on a computer, and the included Windows software allows for easy capture and editing of photos and video. The achromatic color-corrected optics provide sharp, clear images over a wide range of magnifications. The coaxial focus and mechanical stage-movements offer precision and ease of use. The Economy Digital Microscope uses a monocular viewing head that can be rotated 360° to accommodate sitting or standing. Various eyepieces can be used to increase overall optical magnification without changing the camera's magnification. The objective turret provides instant access to four magnification levels, ranging from 40X to 1000X. For traditional viewing, an additional 20X eyepiece extends the maximum magnification to 2000X, and provides eight distinct levels of magnification. The achromatically corrected lenses improve resolution and color accuracy. The 2-layer mechanical stage offers smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. The variable-intensity LED lighting provides bright, daylight-balanced illumination to produce high-contrast, color-correct images. Whether for education, research, or general laboratory use, the Flinn Economy Digital Microscope is an excellent value for those who need reliable performance at an affordable price.

Specifications

Software is compatible with Windows. Microscope can be used on Macs with a 3rd party viewer app or software.

Key Features

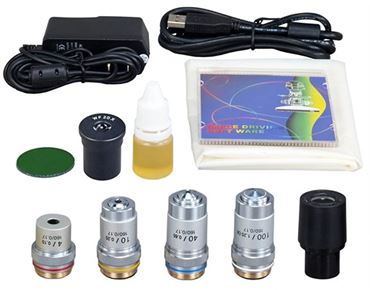

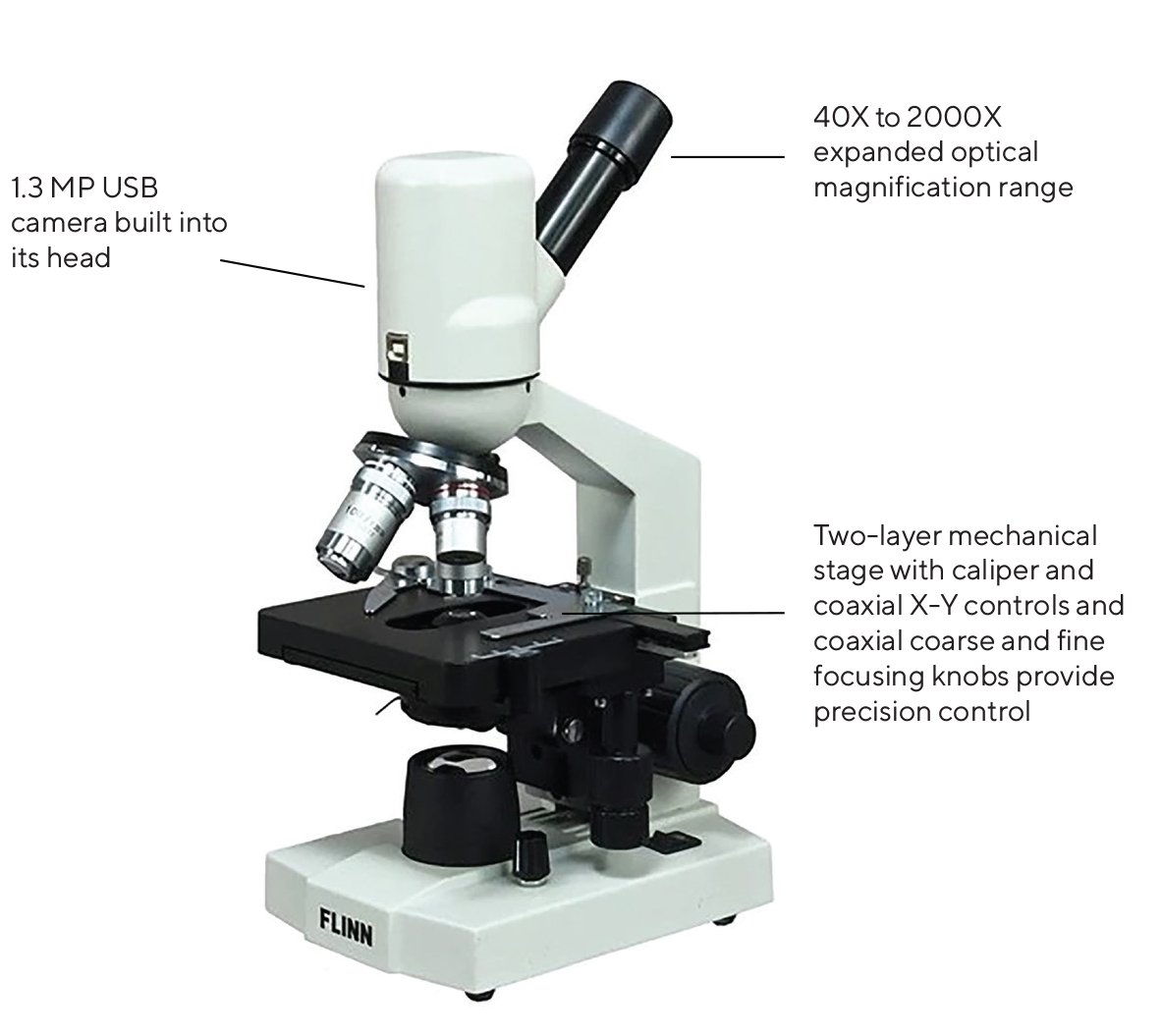

  • 40X to 2000X expanded optical magnification range using high-quality, color-coded objective lenses, and 10X and 20X eyepieces for eight unique settings ideal for viewing cellular structures and microorganisms.
  • This digital-integrated model has a 1.3MP USB camera built into its head.
  • Built-in variable-intensity LED light source and an Abbe condenser with iris diaphragm for fine-tuning the transmitted illumination

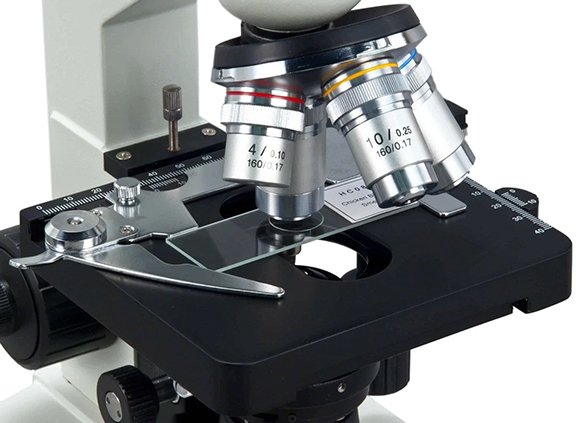

  • Two-layer mechanical stage with caliper and coaxial X-Y controls, and coaxial coarse and fine focusing knobs provide precision control
Light type LED
Magnification type Multi-Power
Magnifying power 40X to 2000X
Camera pixel 1.3MP
Microscope category Compound
Condenser design Abbe-Rack & Pinion w/ diaphram
Condenser optics NA 1.25
Condenser type Brightfield
Eyepiece power 10X, 20X
Eyepiece size 30.5mm
Microscope iris With Iris
Light power 1W
Light type LED
# of bulbs 1
Objective power 4X, 10X, 40X, 100X
Objective size 20mm
Optics Achromatic
Power supply 110V/220V
Sensor CMOS
Stage Two-layer Mechanical Stage
Stage div 0.10mm
