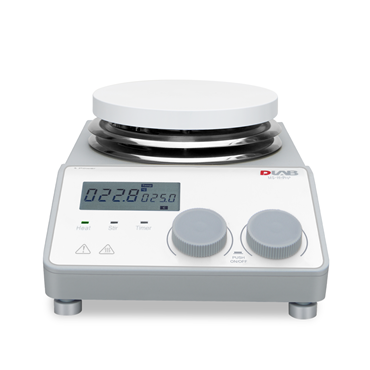

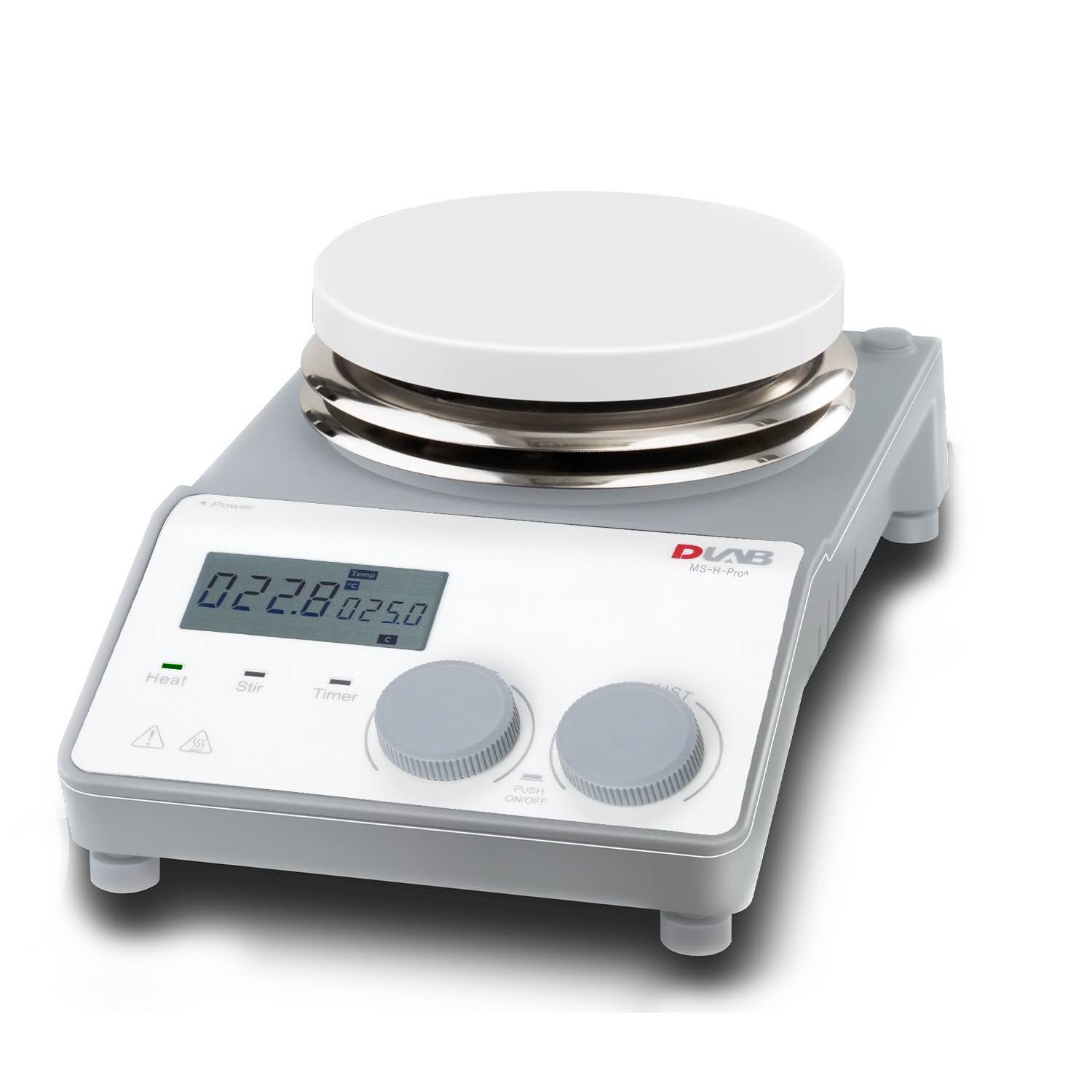

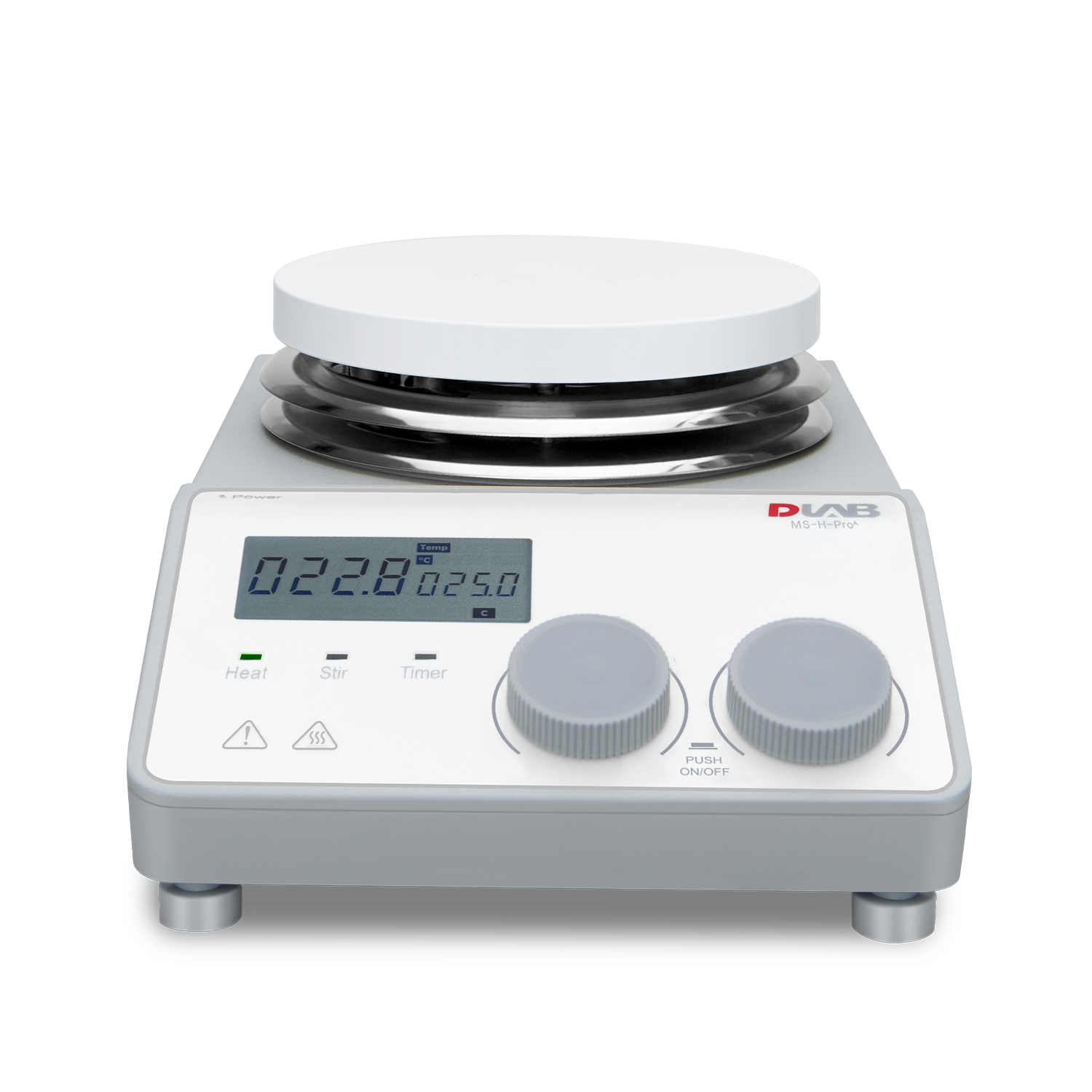

LCD Digital Magnetic Hotplate Stirrer

LCD Digital Magnetic Hotplate Stirrer
LCD Digital Magnetic Hotplate Stirrer
Item #: AP11612

Price: $595.00

In Stock.

LCD Digital Magnetic Hotplate Stirrer features three heating modes and digital temperature control up to 340°C.

See more product details

Product Details

LCD Digital Magnetic Hotplate Stirrer features three heating modes and digital temperature control up to 340°C. Features a brushless DC motor that is maintenance free and explosion-proof. Digital speed control up to 1500 rpm. Maximum stirring quantity of H2O is 20L. Safety circuits provide overheating protection and "HOT" warning flashes if plate temperature is above 50°C even when plate is turned off. Work plate has a ceramic coating that provides good chemical resistance.

Specifications

Work plate Dimension: 135mm（5 inch）
Work plate material: Aluminum cover with ceramic coating
Max. stirring quantity [H2O]: 20L
Speed range: 100-1500rpm
Speed display: LCD
Temperature display: LCD
Heating temperature range: Room temp.-340℃，increment 1℃
Temperature control accuracy: ±1℃(<100℃) ±1%(>100℃)
Temperature display accuracy: ±0.1℃
"Hot" warning: 50℃
Overheating temperature protection: 420℃
Motor type: Brushless DC motor
Stirring positions: 1
Max. magnetic bar length: 80mm
Data connector: RS232
Protection class: IP21
Motor rating input: 18W
Motor rating output: 10W
Power: 650W
Heating output: 600W
Voltage,Frequency: 100-120V/200-240V，50/60Hz
Dimension [WxDxH]: 280×160×100mm
Weight: 2.8kg
Permissible ambient temperature: 5-40℃
Permissible ambient humidity: 80% RH
