Item #: AP11613

Price: $1,119.95

Temporarily out of stock; call for availability.

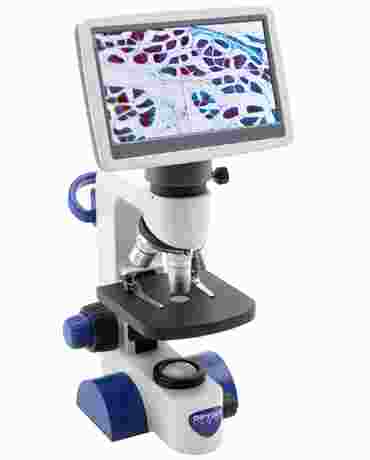

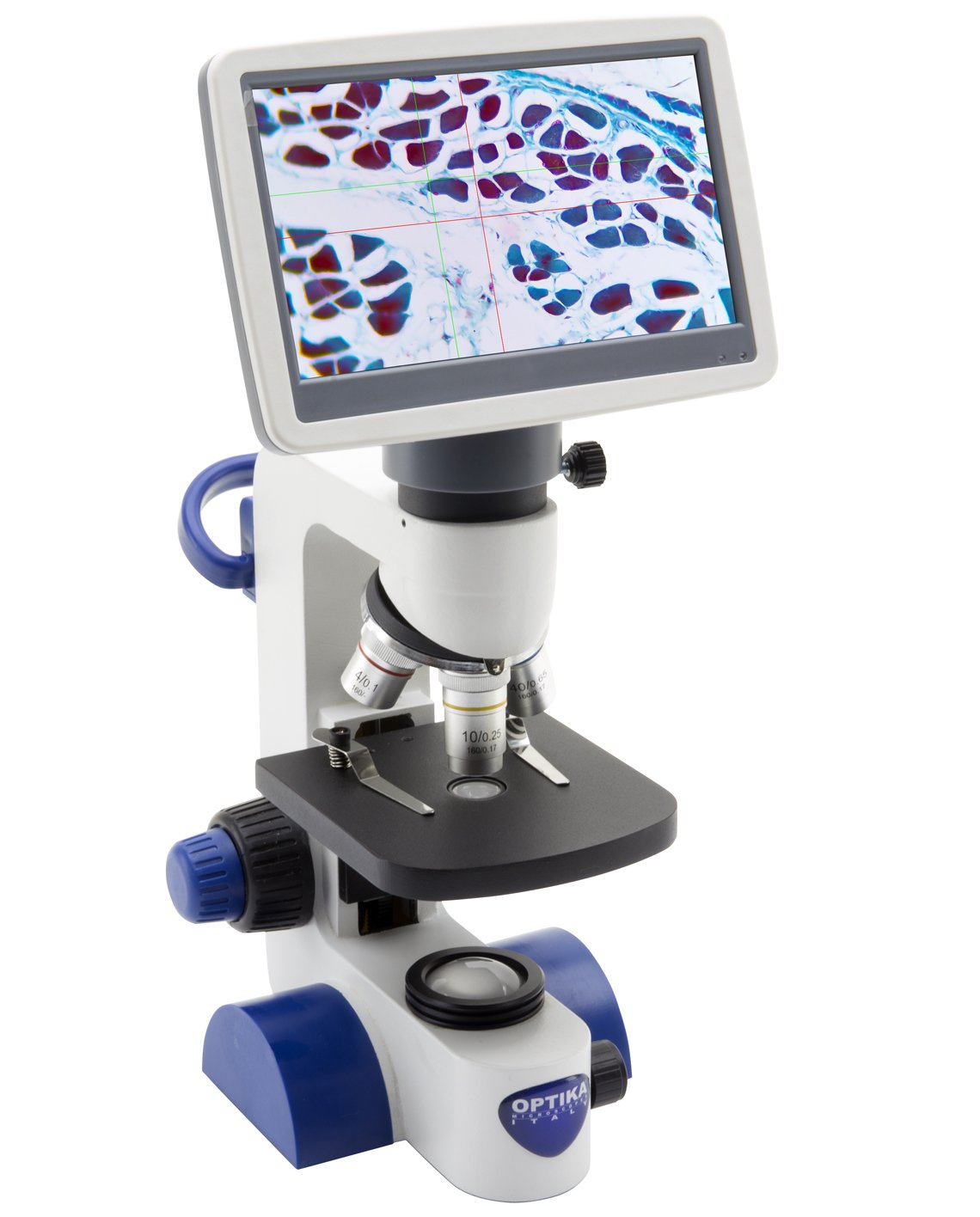

This monocular microscope features a high definition LCD screen which allows you to take pictures and record video with your class. Three objectives and coarse and fine focusing allow you to find samples with ease.

See more product details

Product Details

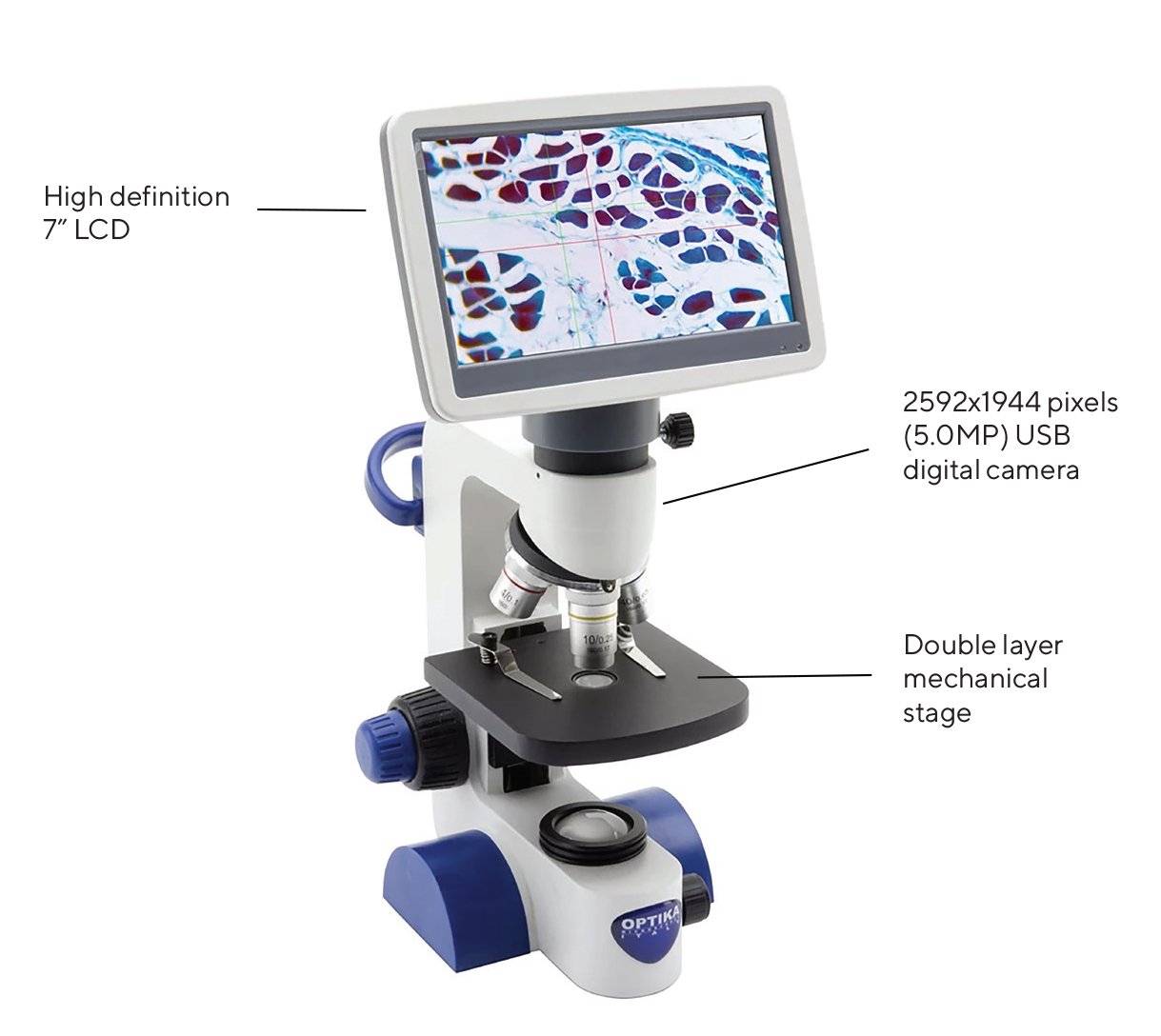

Discover the microscopic world with this monocular microscope with a 7 inch monitor. The digital head includes a high definition 7" LCD screen which allows you to record pictures and video and store it on a micro SD card. This microscope features a quadruple ball bearings revolving nosepiece with three objectives: achromatic 4x/0.10, achromatic 10x/0.25, and achromatic 40x/0.66 all with anti-fungus treatment. The stage is a 120x110 mm fixed stage. Focusing features a coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. The condenser is N.A 0.65 with iris diaphragm. The specimen is illuminated with a 1 W LED with brightness control and rechargeable batteries.

Specifications

  • Observation mode: Brightfield.
  • Digital head: LCD screen: High definition 7” LCD.
  • Camera: 1920×1080 pixels, 30fps (video). Up to 1844×1080 pixels (photo).
  • Storing capacity: On Micro Sd card
  • Video recording: Yes
  • Measuring funcion: Yes, simple line measurement
  • Optical head with eyepiece included
  • Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.
  • Objectives:
    • Achromatic 4x/0.10, with anti-fungus treatment
    • – Achromatic 10x/0.25, with anti-fungus treatment
    • Achromatic 40x/0.65, with anti-fungus treatment
  • Specimen stage: StagErase™ eraseable fixed stage, 120×110 mm, with sample clips.
  • Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
  • Condenser: N.A. 0.65 with iris diaphragm.
  • Illumination: 1 W LED, with brightness control, rechargeable batteries (not included).
  • Color temperature: 6,300 K
