The Intermediate Spectrometer with 30-mm optics is a precision student instrument featuring bright, high-quality optics and an illuminated autocollimator for accurate measurements.
See more product details
Options:
(Select option to see volume pricing availability)
Product Details

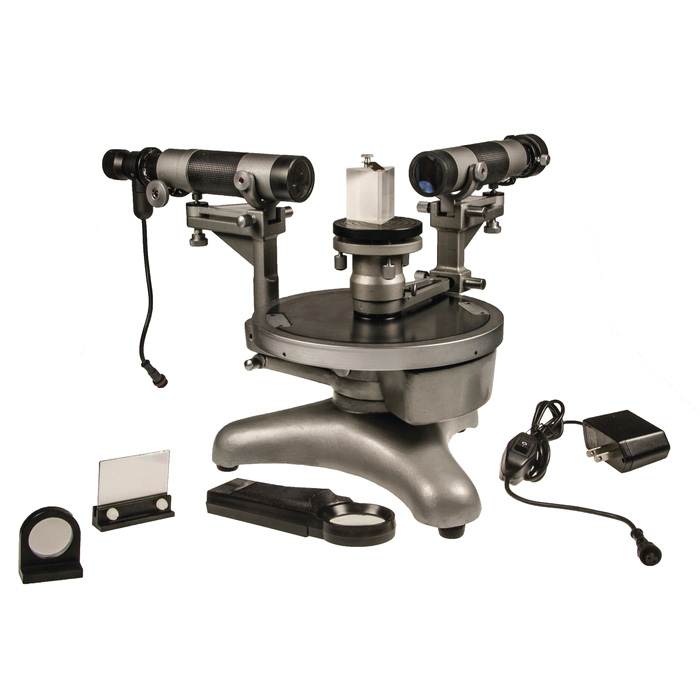

The Intermediate Spectrometer with 30-mm optics is designed to help students make highly precise spectral measurements. Its high-quality 30-mm diameter optics provide a brighter line image for easier and more accurate observations. The built-in illuminated autocollimator allows fast alignment, while the 17.8-cm diameter divided circle and double-ended vernier with illuminated magnifier enable readings to 1 resolution. A 7-cm diameter rotatable, height-adjustable prism table accommodates a wide range of accessories. Included components are a 300 lines/mm diffraction grating with holder, high-quality prism, illuminated magnifier, autocollimation mirror, autocollimation mirror with 110-V AC power supply, and an instruction manual.
844-200-1455
AP8168 Intermediate Spectrometer 30mm Instructions
